AX-6000 PowerSense™ 24 port Modular Multiport InLine Power Hub

AX-6524 3-Slot Rackmount Chassis Complete w/24 ports	AX-6551 Single Port Model

Safely and efficiently provides Power over LAN Data cabling for VoIP phones, Wireless Networking access points, security cameras and other remote access devices .

AX-6500 8 Port Module for the 1 or 3-Slot chassis

The PowerSense™ In-Line Power Hub provides a safe and efficient way to provide power to VoIP Phones, Wireless LAN Access Points, Web Cameras and other LAN Devices without the use of an external power supply for each device. Power is supplied over the existing LAN data cabling system. This greatly improves the range of installation locations for such devices, no longer requiring them to be located near a power outlet. It also adds an unprecedented level of safety and reliability for powered LAN devices.

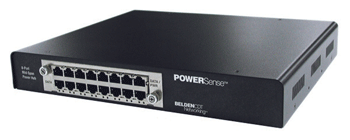

AX-6108 1-Slot Chassis with 8 Port module

The PowerSense™ Hub is a 3-slot rack-mount chassis powering up to 24 devices. A single slot shelf mount Hub is also available. Each 8 port module is Hot-swappable and modules may be added to the chassis without powering down the unit. If an individual power port is damaged due to a lightning strike or power surge, the module bank may be hot swapped out without powering down the chassis or disconnecting the other devices attached to the other power ports in the chassis.

When used with an uninterruptible power supply, the PowerSense™ Hub provides non-stop power for up to 24 connected devices. PowerSense™ is tough and durable, made from an all metal chassis. We build PowerSense™ right here in Silicon Valley, CA using ISO 9002 manufacturing processes. Our pledge to You is quality.

PowerSense™ operates on category 5, 5e or 6 grade LAN Data Cable at standard Ethernet distances. The AX-6000 series supports powered devices requiring the IEEE 802.3af Power over Ethernet Protocol, or Cisco CDP style devices when using the optional 8858-01/02 PoE Connectors.

Features/Benefits:

• Hot swappable 8-port modules in the 19" rackmount ready chassis support IEEE 802.3af powered devices


• Each module is current limited for short circuit protection with power isolation of 1500 VRMS


• Each module auto-detects the power requirement for saftey and offers transparent 10/100Mb and management operations


• Each module has TWO diagnostic LED's as shown above


• Support for all compliant IEEE 802.3af powered devices


• Each module supplies full 15.4 watts for up 8 devices as per the IEEE 802.3af standard

Specifications:
Certifications
Safety:	UL 1950 and cUL
Emissions:	FCC Class A EN55022 Class A EN55024, CE Mark (CISPR 22 Class A)
Standards:	P802.3af 802.3u
Interfaces
24 Female RJ-45 Data ports	Shielded jacks for Category 5 or greater UTP (two pair wire) or 100-ohm STP (two pair wire). Distance: 100 meters
24 Female RJ45 Data+Power on Ethernet (PoE-Power over Ethernet) ports	Shielded jacks for Category 5 or greater UTP (two pair wire) or 100-ohm STP (two pair wire). Distance: 100 meters
LED Indicator/Module	Detect/Power Forwarding (blue) Module Power (green)
Electrical: AC Power Input with removable power cord (IEC plug)
Input Voltage:	90-264V Autoranging (46Hz - 63Hz)
Connector:	3-pin with Ground
Chassis Grounding:	Yes
Power Supply:	Qty 3 at 150W each
Electrical: DC Port Power Output
Power Enabling:	IEEE: IEEE 802.3af
Power pins:	Unused pairs, pins 4,5(+), 7,8(-)
Max. Power/Port:	15.4W
Max Power-all ports active:	24*15.4W (AX-6500 and AX-6500GIG); 12*36W (AX-6500HW4)
Physical/ Mechanical
Chassis type :	19" Rackmount w/24 Ports
Chassis size :	17.5"W x 16.25"D x 1.75"H - 3 slot 12.0"W x 10.20"D x 1.75"H - 1 slot
Module Type :	Removable, hot swappable
Weight:	4.5lbs. (2.2kg) - 3 slot 2.8lbs. (1.3kg) - 1 slot
Physical/ Environmental
Operating Temperature:	0° to 40° C ( 32° to 105° F)
Storage Temperature:	-10° to 60° C ( 14° to 140° F)
Relative Humidity:	10% to 90% non-condensing
Operating Altitude:	-1,000 to 10,000 feet
LED Indicators/Module
LED Indicators/Module	Detect/Power Forwarding (Blue) Module Power (Green)

AX-6000 Ordering Information
Single Port Model
AX-6551	IEEE 802.3af with removable IEC powercord
Chassis only
AX-6224	3 Slot PowerSense™ Chassis - 19" Rackmout ready
AX-6208	1 Slot PowerSense™ Chassis
3-Slot Chassis - Complete w/8 port modules, up to 3 modules, 10/100
AX-6524	24 Power & Data Ports - IEEE 802.3af
AX-6516	16 Power & Data Ports - IEEE 802.3af - w/one cover plate
AX-6508	8 Power & Data Ports - IEEE 802.3af - w/two cover plates
1-Slot Chassis - Complete w/8 port module, 1 module
AX-6108	8 Power & Data Ports - IEEE 802.3af
AX-6108-RM	19" Rackmount Kit for AX-6108
3-Slot Chassis - Complete w/4 port High Power modules, up to 3 modules, 10/100
AX-6512HW4	12 Power & Data Ports - IEEE 802.3af - 36 watts per port
AX-6508HW4	8 Power & Data Ports - IEEE 802.3af - 36 watts per port
AX-6504HW4	4 Power & Data Ports - IEEE 802.3af - 36 watts per port
3-Slot Chassis - Complete w/8 port Gigabit modules, up to 3 modules, 10/100/1000
AX-6524GIG	24 Power & Data Ports - IEEE 802.3af
AX-6516GIG	16 Power & Data Ports - IEEE 802.3af
AX-6508GIG	8 Power & Data Ports - IEEE 802.3af
Individual Chassis Modules
AX-6500	IEEE 802.3af module - 8 port
AX-6500HW4	IEEE 802.3af module - 4 port High Power - 36 watts per port
AX-6500GIG	IEEE 802.3af module - 8 port Gigabit support
Chassis - Cover Plates for unused slots
AX-6201	Single Slot cover plate
Power over Ethernet Connectors
AX-8858-01	PoE Connector allows a Cisco 7900 series IP phone or Cisco access point to take Power over Ethernet from an IEEE 802.3af style Ethernet switch or mid-span power injector.
AX-8858-02	PoE Connector allows a Cisco 7900 series IP phone or Cisco access point to take Power over Ethernet from an IEEE 802.3af style HP Pro Curve Ethernet switch.
