RECTIFIER
Conversion of AC to DC Solution
A rectifier is an electrical device that converts
alternating current (AC) to direct current (DC), a process known
as rectification. Rectifiers have many uses
including as components of power supplies and as detectors of
radio signals. Rectifiers may be made of solid state diodes,
vacuum tube diodes, mercury arc valves, and other components.

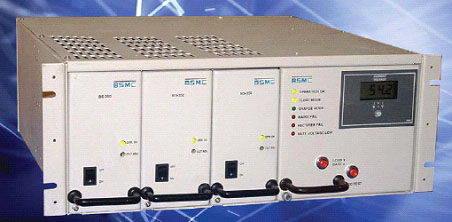

3x6.25A/48V Power Plant
- Suitable for small load requirement upto 1000W
- Suitable for Microwave, DLC, SDH Installations, ISP networks
etc………
- Widely being used by GSM, CDMA, EPABX Mfgr, & Internet
Service providers

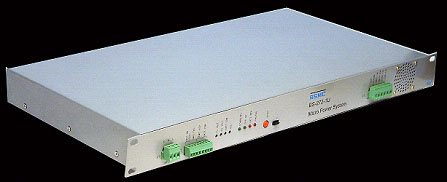

Model BS 272-1U is a compact power system
for Low DC power applications.
The features of 1U- 19” rack mountable power system are
mentioned below:
- 1500W Rectifier
- 3000W Rectifier
CORDEX SUPERVISORY & CONTROL
- LCD touch-screen
user interface
- Internet ready, integrated SNMP
- High reliability CAN bus communication
- User definable alarms
- Flexible battery management features
- Power Save rectifier shutdown feature-Smart peripheral features
RS-232 Communication
Direct PPP connection between laptop and CXC through
a web interface
RS-485 Communication
Full functionality with Pathfinder series of rectifiers
CAN Bus Communication
Highly reliable, robust communications with Cordex series
of rectifiers
Auxiliary CAN Bus Communication
Support for CAN Bus enabled peripherals including shunt
multiplexer and battery cell monitoring
Smart Peripheral Modules:
Shunt Multiplexer
-Monitors up to 16 shunts per module
Battery Cell Monitor
-1 string of 2V cells or 4 strings of 12V cells per module
CORDEX RECTIFIER
Cordex CRXC 48V- 650W (Modular Switched Mode Rectifier)
- Available in 13.5A @ 48VDC
- 650W constant power output
- Power limiting and wide range AC input
- 91% efficiency and power factor correction
- Convection cooled 2RU module
- H ot swappable
Cordex CRXC 48V- 1KW (Modular Switched Mode Rectifier)
- Available in 21A @ 48VDC
- 1kW power output
- Power limiting and wide range AC input
- 92% efficiency and power factor correction
- Convection cooled 4RU Module
- Hot swappable
Cordex CXRF 48V- 1.8kW (Modular Switched Mode Rectifier)
- Available in 37.5A @ 48VDC
- 1.8kW power output-High power density
- Power limiting and wide range AC input
- High efficiency and power factor correction
- Hot swappable, ultra compact design 4 RU Module
Cordex CXRF 48V- 3.6kW (Modular Switched Mode Rectifier)
- Available in 75A @ 48VDC
- 3.6kW power output
- High power density, over 14W/cubic inch
- Power limiting and wide range AC input
- High efficiency and power factor correction
- Hot swappable, ultra compact design 4RU Module
