GSM gateway (VoIP-GSM gateway) for interconnectivity
between IP, GSM and ISDN
VoIP
GSM gateway offering up to 8 channels VoIP and
GSM
Gateway
between VoIP, ISDN and GSM
VoIP
to GSM and GSM to VoIP
Effective
least cost routing (LCR) through intelligent
local SIM management
SIM
card server integration
Complete
ECOTEL ISDN functionality
Monitoring
and SIM management software
SIP-based
VoIP GSM Gateway
The VoIP GSM gateway ECOTEL® VoIP
is based on the SIP protocol (session
initiation protocol) and offers eight VoIP channels,
so eight VoIP to GSM connections can be established
simultaneously. The device supports all common codes.
ECOTEL® VoIP stores CDRs (call detail
records) for each call. Via the ECOTEL® VoIP
software it is possible to monitor channel statistics
and channel statuses.
The VoIP GSM gateway ECOTEL® VoIP
provides reliable, cost-effective
connections between IP, GSM and ISDN

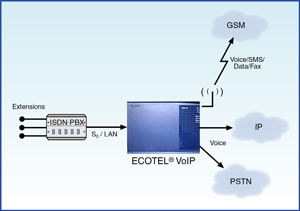

networks. Typical applications are least cost
routing (VoIP GSM gateway integrated with an
existing IP or ISDN PBX), connectivity for mobile

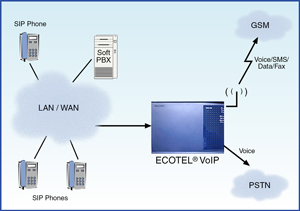

offices or distributed applications with multiple
VoIP GSM gateways (within the same IP-network plus
central configuration and monitoring software).
The number of GSM channels is scalable
up to a total of eight, and the GSM modules are compatible
with all types of GSM networks (GSM 850/900/1800/1900/R).
ECOTEL® VoIPcan simultaneously route up to eight IP calls to
GSM. It offers a
built-in antenna splitter which ensures easy installation
with a maximum of two antennas.
