ATEX Man-down



ATEX water activated Personal Locator Beacon

ATEX Water Activated
Personal Locator Beacon

ATEX Water Activated Personal Locator Beacon

The ATEX Mobilarm V100 Water Activated Personal Locator Beacon is the perfect device for man overboard alert and in water tracking via VHF radio. The ATEX Man Overboard Alarm provides automatic man overboard alert and in water tracking using the marine VHF radio band.

The ATEX Man Overboard Alarm automatically transmits a man overboard distress alert for the person in the water using VHF Digital Selective Calling within seconds of the fall overboard. Once the device acquires a GPS lock, typically in 45 to 60 seconds, it will transmit the man overboard alert again via DSC, complete with the current latitude and longitude coordinates of the person in the water. The ATEX Man Overboard Alert then broadcasts the complete Mayday message in a synthesised voice on channel 16, the marine radio emergency channel.

The ATEX Man Overboard Alert repeats the DSC and voice messages at regular intervals to provide in water tracking of the casualty, the first known position is marked and tracked as they drift, providing rescuers with valuable information about where to perform the search.

The ATEX Man Overboard keeps sending messages until the device is deactivated. The Mobilarm V100 battery will support transmission for a minimum of 12 hours and with a 1W transmitter, it has an alerting range of approximately 2 to 10NM. It also features a high-intensity SOLAS compliant strobe light for visual homing.

Features

  • Cost-effective personal safety device suitable for use in any maritime organisation or on any type of vessel.
  • Designed to ATEX standards and complies with all relevant international certifications and national marine radio standards.
  • Equipped with internal GPS receiver to transmit real time coordinates and SOLAS-compliant strobe light for visual homing.
  • No requirement for addtional direction finding equipment or satellite rental time.
  • Automatically activated on immersion in water or can be manually activated.
  • Palm-sized unit weighs less than 200g.
  • Portable, can be worn on belt, harness or PFD.
  • Battery supports transmission for a minimum of 12 hours.
  • 10 year battery shelf life.

TWIG Protector ATEX surveillance Device incl. Man-Down

TWIG Protector
ATEX Surveillance Device
Incl. Man-Down

 TWIG Protector ATEX Surveillance Device Incl. Man-Down

TWIG Protector Ex is a professional security device that allows to secure personnel with one solution. Robust design and water proof sealing with neck strap. Ex version is approved to be used in potentially explosive atmospheres  (ATEX II 2 G EEx ib IIB T4 )

Built-in high performance GPS and telematics features allow location based services to be built to meet the requirements of the most demanding solutions.

Alarm button activates a predefined emergency protocol that opearates according to DIN0825 sending latest know position via SMS while also allowing to make voice call.

Lone Worker Protection
Built-in, Man-Down-Alert functionality includes a user-operated alarm button and automated emergency
messaging. In the case of a fall or non-movement, a call to predefined numbers alerts emergency rescue
services, with accelerometer functionality within the device, automatically transmitting its location.

Personal Protection
The Protector can be used to ensure personal safety and security. A panic
button can be pressed in case of emergency and information on position, direction and speed of
movement is sent immediately to a predefined number, establishing communication.

Long-term Care
New levels of telecare solutions provided by TWIG, enable those with long-term care needs to enjoy
independent and active lives. When the Protector alarm button on the device or wrist alarm is
activated, a voice call to the care center is made enabling the emergency services to track and
trace its owner.

Personal Surveillance
The Protector offers peace of mind
by providing real time information as
to the location and status of loved
ones. TWIG Internet Services
enable friends and family to track
and locate those they care for
anywhere around the world.
Corporate back end systems can be
used to connect via SMS or TCP/IP
to Twig Protector.

Specifications TWIG Protector ATEX Surveillance Device Incl. Man-Down

Compatible to all TWIG products
The shock and water resistant Protector can communicate with all TWIG devices and support systems using MPTP (Mobile Phone Telematics Protocol) both SMS and GPRS.

Mechanics

  • Shock proof case
  • Water proof (IP67)

Other features

  • Dedicated ergonomic SOS button
  • Power On/Off
  • Preprogrammed Quick dialling
  • Answer / End call
  • Display for device status and operation

Brief technical specification

  • Dimensions: 18mm x 45mm x 94mm
  • Weight: approx. 80g inc. Battery
  • Tri-band GSM (900/1800/1900) unit
  • Built-in GSM and GPS antennas
  • Operating temperature -20°C..+50°C**

Battery

  • Standard battery Li-ion 1300 mAh
  • Stand-by time Up to 260hrs (no GPS)
  • GPS op. time Up to:*
  • 120hrs (1 position/hr)
  • 24hrs (1 position/s)
  • Charging time <2hrs for 100%

GPS

  • High performance receiver
  • Accuracy ~5m, 95% of time (Open sky)
  • Acquisition Rate (Open sky, stationary)
  • Cold Start 45sec (typical)
  • Warm Start 38sec (typical)
  • Hot Start 2-8sec (typical)

Advanced power saving options
ATEX- approved:

  • II 2 G EEx ib IIB T4
  • Zone 1 Category II Gas intrisically safe
  • temperature class 4

-Top-
X-Mark mybodyguard

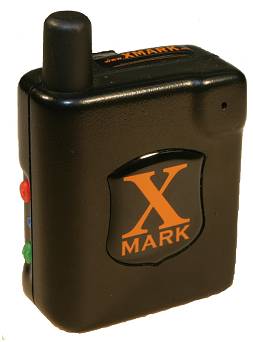

X-Mark MyBodyguard

X-Mark MyBodyguard

MyBODYGUARD
Is with inside and outside 3D localization an breakthrough in the field of personal security. Now also available in as ATEX variant.

MyBODYGUARD
Be threatened and/or uncertain is concerning the security of your loved ones means life in fear
and with movement restriction. Also perfect for protection in Industrial (ATEX) zones.

ALARM BEATS IRRESPECTIVE OF WHERE YOU ARE YOURSELF.
My-Bodyguard uses of within and outside 3d location provision and mobile telephony.
This mobile alarming system offers the possibility to set an alarm no matter where your
employee is himself, even in car parks, technical spaces and hitches hike. The system is
unique because it uses none of the internal infrastructure of buildings and uses entirely standalone work.

FIRST AT EMERGENCY NOTIFICATION
X-Mark works together with official private alarm centrals (PAC). It meets all requirements. By simultaneously sending network the report in several manners (DTMF, SMS, GPRS) the GSM guarantees that the report on an emergency centre is received.

NEED REPORT TAILORED
By pressing one or two buttons you can make the nature of the need report confessed to the
emergency centre. Report with highest urgency: At a life-threatening situation you press on the red and green button. Report with lower urgency: At a not-life-threatening situation you press on the red button. My-Bodyguard can to your wish be established so that you stipulate who must be very warned there at one on the need bud (need report).

SPEAKING AND LISTENING CONNECTION
In all above need reports the report comes in at the emergency centre. My-Bodyguard opens during the need report a microphone and loudspeaker. The centre trick of the emergency centre will be able to hear surrounding sounds and speak with you if that is wished.

IF YOU ARE NOT ABLE TO MAKE A NEED REPORT
My-Bodyguard  can be programmed to give an automatic emergency rapport when the one that carry’s the X-Mark doesn’t move for 5 minutes. Report scan go out to either emergency services or any other programmed Phone numbers.

NEWEST GPS-TECHNOLOGY
My-Bodyguard  uses the newest GPS technology. This means that the position of the
employee  can be desited even if they are in protected parts of buildings like a parking garage. To ensure a stable connection we recommend extra GPS beacons inside buildings. This will make sure the My-Bodyguard always has a GPS connnection.

ATEX
Zone:              Zone 2 ATEX Product.
Classication: CE added by EX II 3GD

  Ex nl  IIC T4
Ex iD A22 T85C

Specifications X-Mark MyBodyguard with Man Down functionality

GPS (Global Positioning Systems)
GSM (Global System for Mobile communication)
rechargeable battery
shockproof and waterproof
weight: 120 grammes
emergency signal transmittable for 48 hours
size: 67x 57x 22 mms
emergency power supply

Note: This is the ATEX Version of the Xmark MyBodyguard!

XP3 sentinel

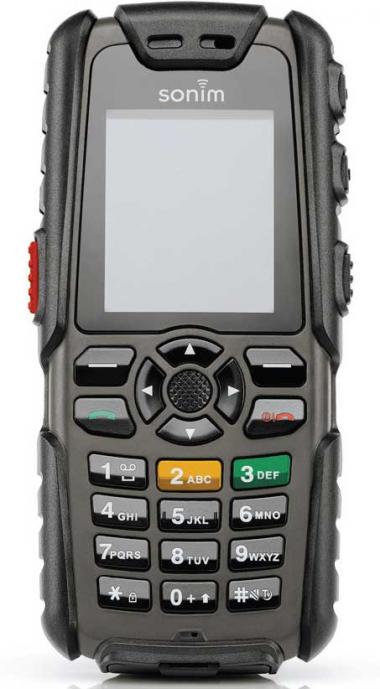

XP3 Sentinel

XP3 Sentinel

The XP3 sentinels are phones are known as durable. Not indestructible, but they are very robust and can withstand many hardships. With the launch of the XP3 Sentinel there is an additional function in: life saver. That sounds very exaggerated but only for those working in hazardous environments (voluntarily or dwells) is the unit in the event of an accident really make the difference between life and death.
The Sentinel is in fact the Sonim XP3equipped with so-called man down motion sensor that can recognize as the owner of the device, (if you carry it with you ofcourse) stops moving for a long time. Think of workers who live far from the civilized world to work or rock climbers or adventurers who have a greater chance of accidents.


The moment the 'man-down feature is active NOTE, the time taken should be taken into account can be set on the phone, the Sonim XP3 Sentinel autnmatisch contact the emergency services and the location (GPS) of the'man down' passed. Sonim works with Version: SafeLinQ (International), People Safe (UK), Trackaphone (UK), Presentec (Germany) and GEOS Alliance (USA / Canada).

In the words of the manufacturer: The Sonim XP3 Sentinel is the ultimate phone for safety of Lone Workers in extreme circumstances, however serious the situation is," said Bob Plaschke, CEO Sonim Technologies. With extensive GPS, special emergency alarm buttons and a man-down motion sensor that shocks, falls, tilts and no motion detecting, the Sonim XP3 Sentinel equipped hand-in-hand to work with an advanced 24x7 emergency center of our partners. We have worked with Sonim worked to ensure that the mobile phone meets all requirements set by helmet bearing Lone Workers in utility water, electricity and gas, construction, agricultural, industrial and logistics sectors to a number of segments call says Ian Johannessen, Managing Director of People Safe. The XP3 Sentinel mobile phone in conjunction with the Safety Solutions SafeLinQ allows employers to exploit their caring responsibilities, by a craft to offer to its employees, even in the most extreme circumstances said Martin van Bree, CEO SafeLinQ International. The basis for this partnership is the goal to excel in ensuring an end-to-end solution that is as robust as the Sonim phone.
